CB4-20A Double Row Terminal Blocks, 11mm pitch, 20A 300VAC

CB4-20A Double Row Barrier Strips, 11mm pitch, 20A 300VAC, Accepts Wire Range: 12~18 AWG, 2 to 26-Pole double row panel mount terminal blocks.
Quantity:
  • CB4-20A

CB4-20A Double Row Terminal Blocks, 11mm pitch, 20A 300VAC



Features:

  1. Barriers help prevent short circuits.

  2. Dual-Row Barrier Strips Rugged base eliminates breakage.

  3. Accepts wire Wire Range 12~18 AWG.

  4. Rated for up to 300V, 20 Amps.

  5. 11mm pitch, 2-26 Terminals, 2-row



Specification:

  1. Product Name: Double Row Terminal Blocks 20A

  2. Product Type: Barrier Strip, Double Row

  3. Model Number: CB4-20A

  4. Electrical Rating: 20A 300VAC

  5. Housing Material: Plastic NYLON 66 (UL 94V-0)

  6. Terminal: Brass, Nickel Plated

  7. Screw: Steel, M3.5, Nickel Plated

  8. Working Temperature: -40˚C to +105˚C

  9. Insulation withstand Voltage: AC2000V at 1 min

  10. Insulation resistance: 500MΩ or more at DC500V

  11. Wire Range: 12~18 AWG

  12. Max. Torque Value: 12Kg/cm

  13. Number of Rows: 2

  14. Number of Positions: 2-26

  15. Pitch (terminal to terminal): 11mm

  16. Place of Origin: Taiwan

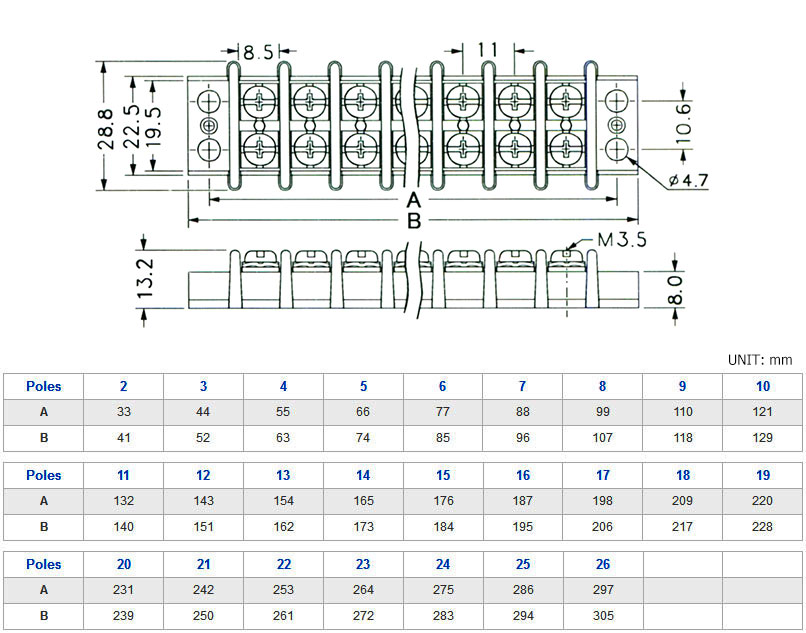

CB4-20A Double Row Terminal Blocks



Related Links: http://www.chengee.com.tw/en/products/CB4-20A.html
